Megaorei 4B NK007 Plus 1080P Tactical Night Vision Scope Attachment Hunting IR Camera with HD OLED Screen & Ajustable Crosshairs

Megaorei 4B NK007 Plus 1080P Tactical Night Vision Scope Attachment Hunting IR Camera with HD OLED Screen & Ajustable Crosshairs

The new Megaorei 4B (NightCrystal 4B) night vision device is the newest development in year 2023. The digital night vision monocular is suitable for observational use and for mounting onto optics. Thanks to the built-in adjustable IR emitter, available with 850nm or 940nm wavelengths, the monocular night vision can also be used in total darkness. The new full HD sensor enables razor-sharp night vision. Due to its operating principle, the device guarantees very high precision because the optical axis is unchanged. The handy compact design, improved software, the clear well-arranged menu and low-noise buttons offer maximum operating comfort and make the Megaorei 4B (NightCrystal 4B) the ideal hunting companion.

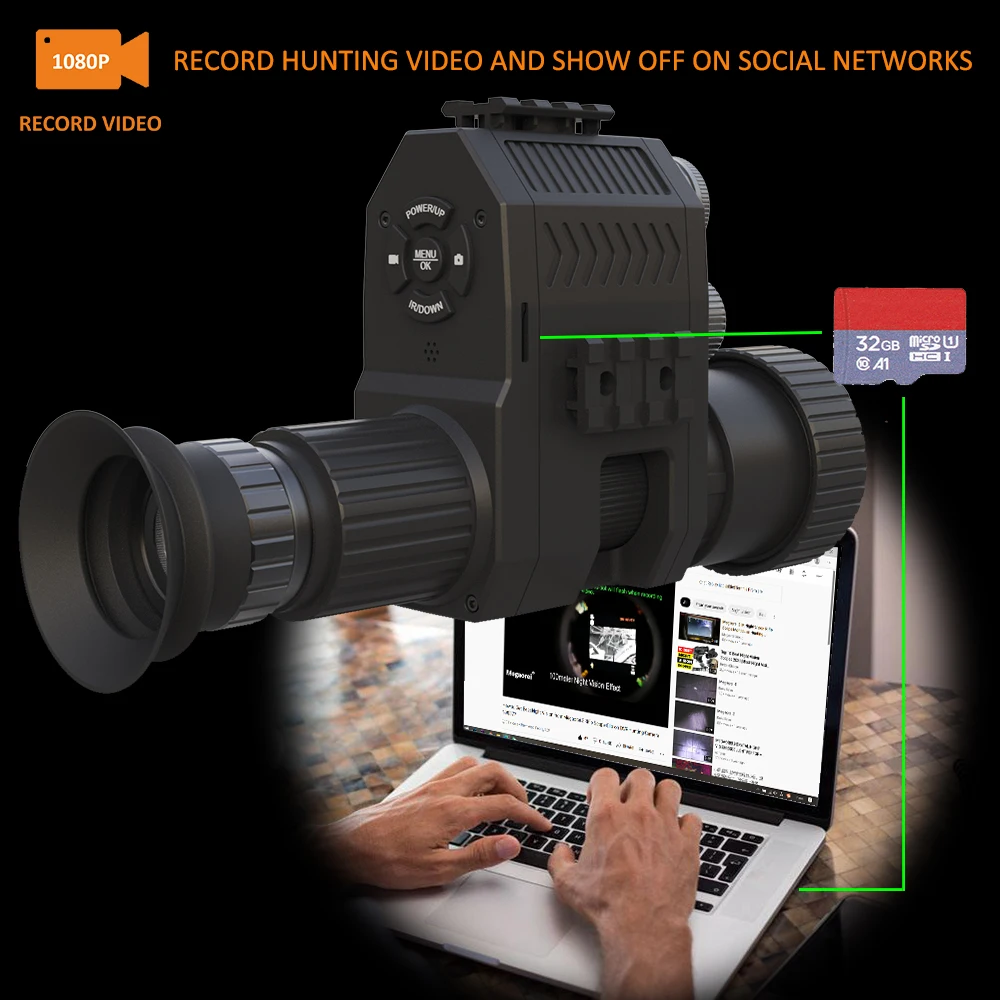

SHOOT VIDEO & PHOTO IN 1080P

High nighttime sensitivity, high resolution display and sensor. Restore everything even in total darkness,can make video or shoot photo in 1920*1080 FHD.
Not only can you view your subject at night with the digital ir hunting scope, you can also record its image as a still photo or video clip. Simply insert a micro SD card to capture high-quality video and images and then easily upload the files to your computer and show off in your social networks.

POWERFUL BUILT-IN IR ILLUMINATOR

Observe Your Surroundings in Complete Darkness,the infrared night scope allows users to maintain the advantages of their day optics in the nighttime. It is supplied with a high power invisible IR illuminator (850 nm). Hunting night vision goggles with IR positioning, you can find target quickly in darkness.

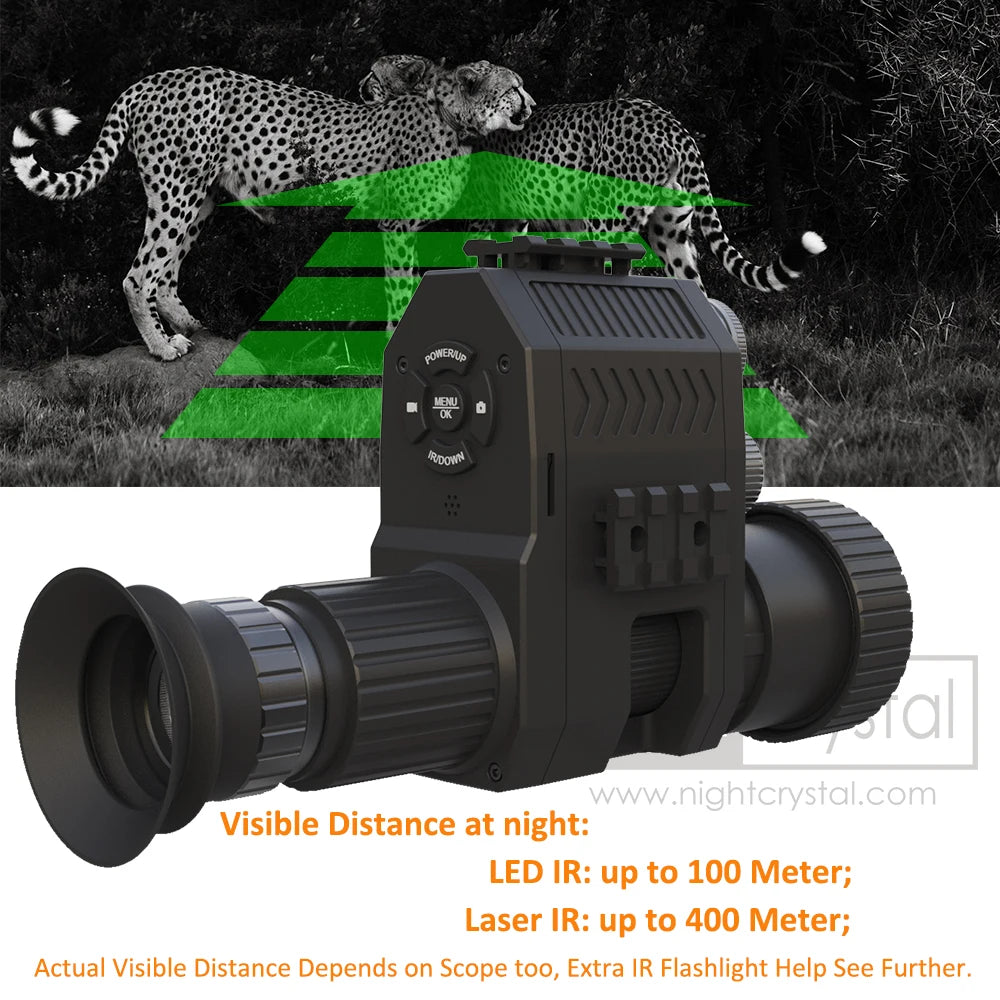

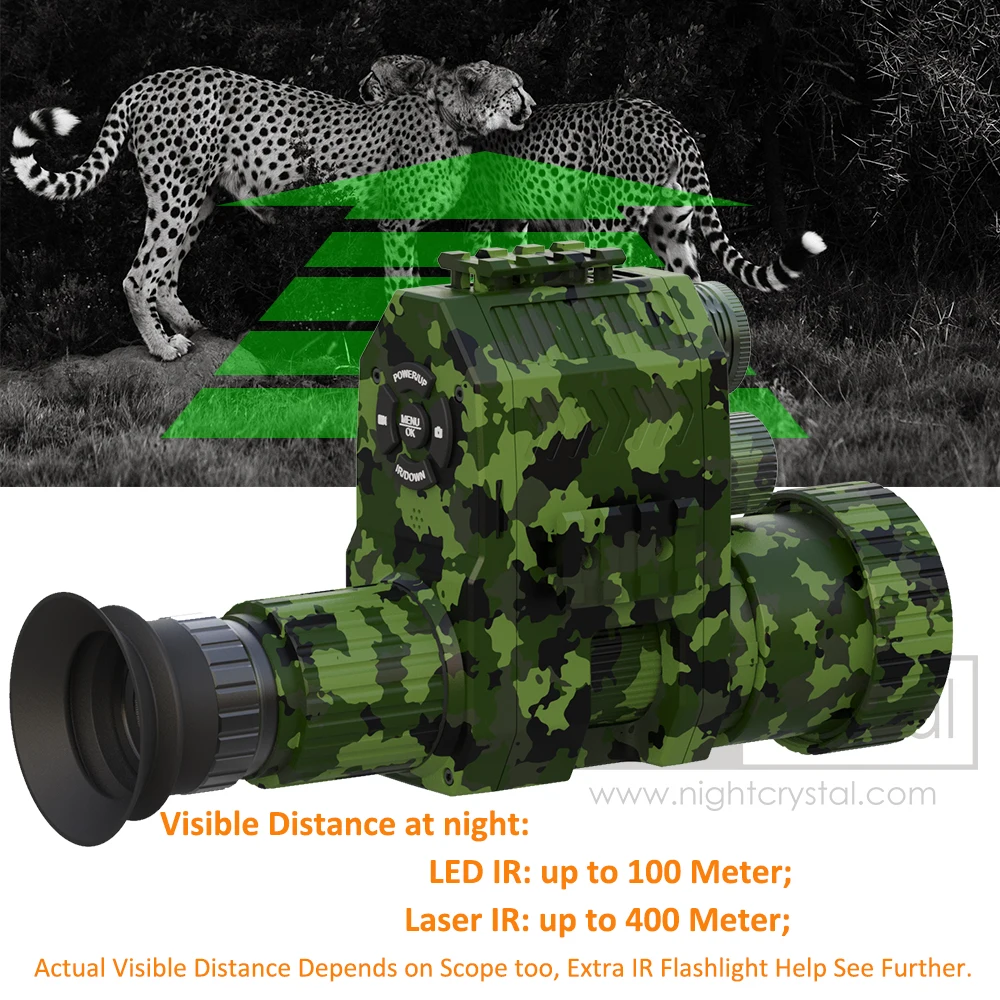

There are 2 options for IR flashlight for your selection:-
LED IR Flashlight:
Visible Distance at night: up to 100m;
Laser IR Flashlight:
Visible Distance at night: up to 400m;
Actual visible distance at night also depends on scope and the environment, adding more IR flashlight will help to look further.

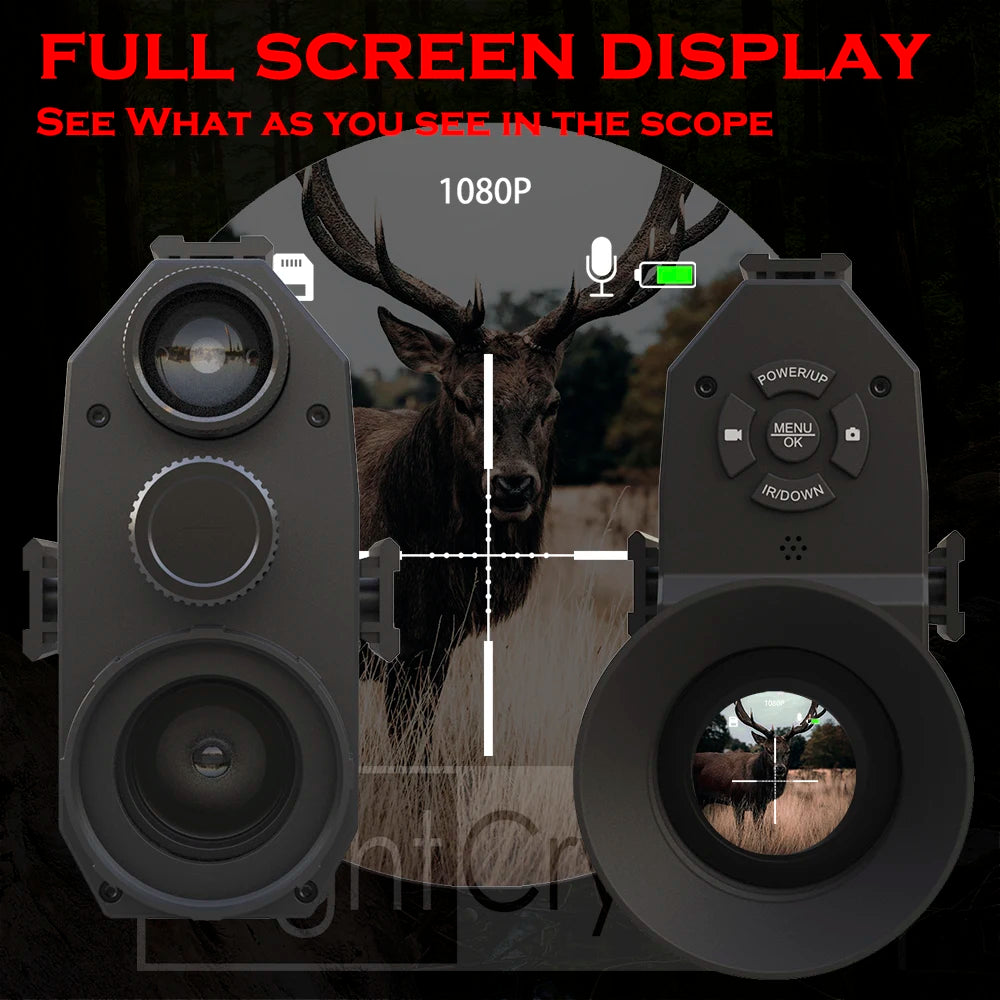

FULL ROUND HD SCREEN WITH ADJUSTABLE CROSSHAIRS

NightCrystal 4B Hunting nightvision supports day and night switch, you can get a color view in daytime and get clear vision at night.
Equipped with a full size round screen and 12mm night vision camera, you can see exactly what you see in the scope. Brightness & constract adjustment is available.
The built-in adjustable crosshairs on the screen gives you pin point accuracy on the target.

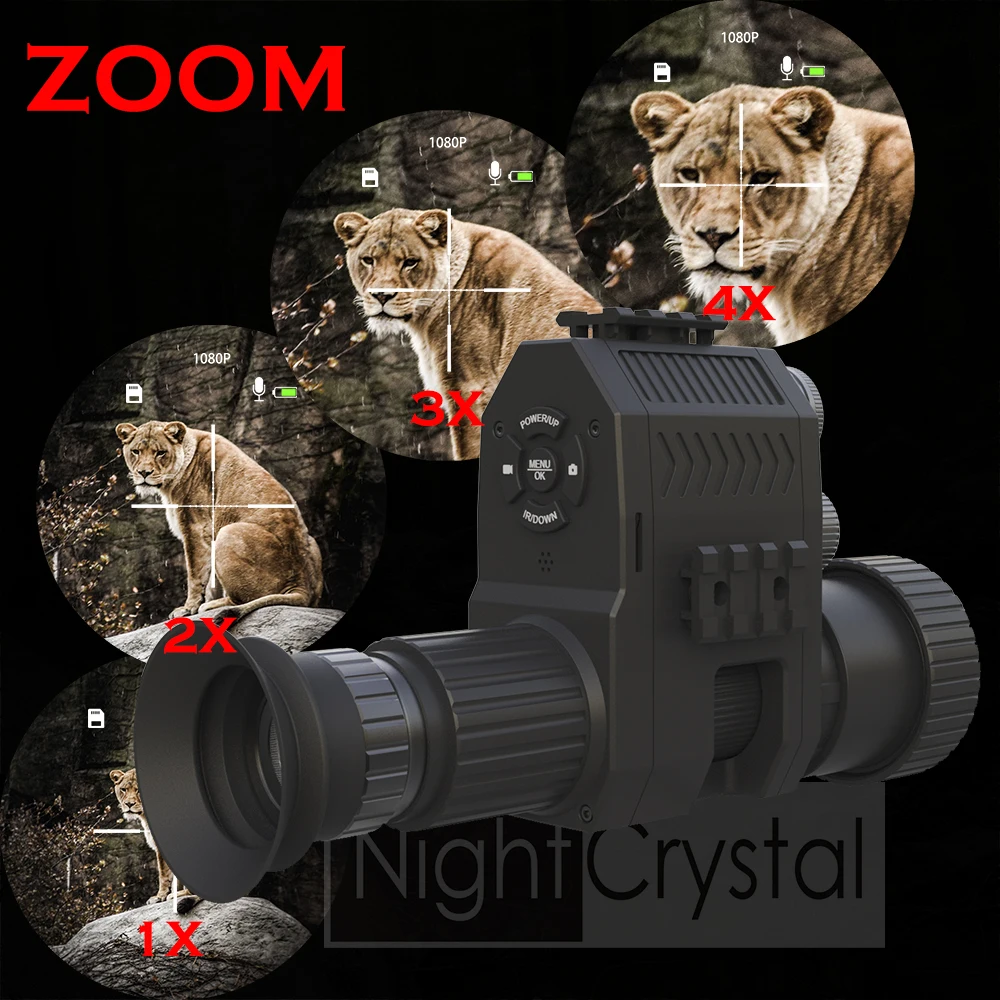

1X-4X DIGITAL ZOOM

The magnification function of NightCrystal 4B Night Vision Video Camera allows you to select suitable magnication times (1x, 2x, 3x, 4x available) by the operation menu.

SPECIFICATION

Video/Picture Resolution: 1920*1080p HD
Screen: 1.2inch/390*390p/261PPI AMOLED
Video Format: MOV
Picture Format: JPG
Size: 21.5*11*6cm
Infrared Power: 5W
Infrared Wavelength: 850nm
Weight: 382g with battery inside
Storage Method: TF Card
Fill Light: Integrated
Focusing: 3cm-∞
Battery: 1pc of battery need
Battery Working Time: 1.5 to 2 hours with 2600mAh battery (8 hours if IR torch off), will be shorter when record video

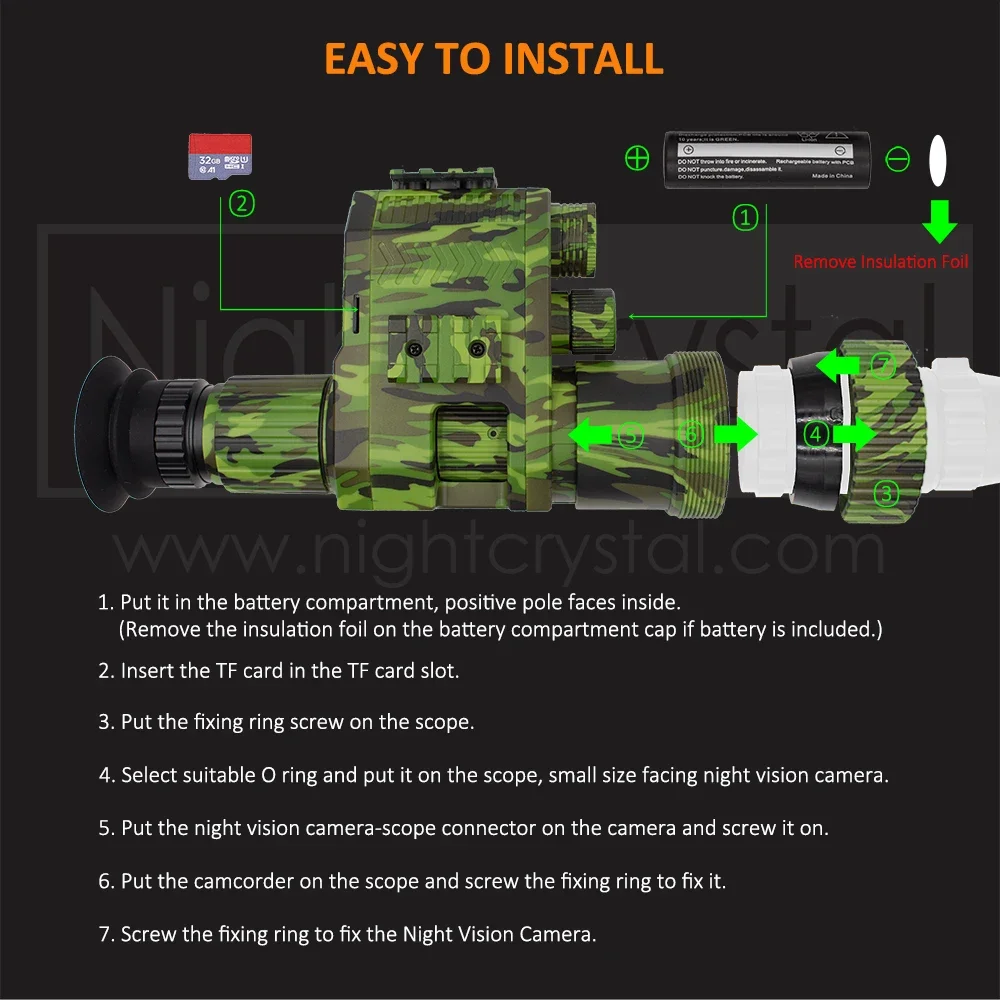

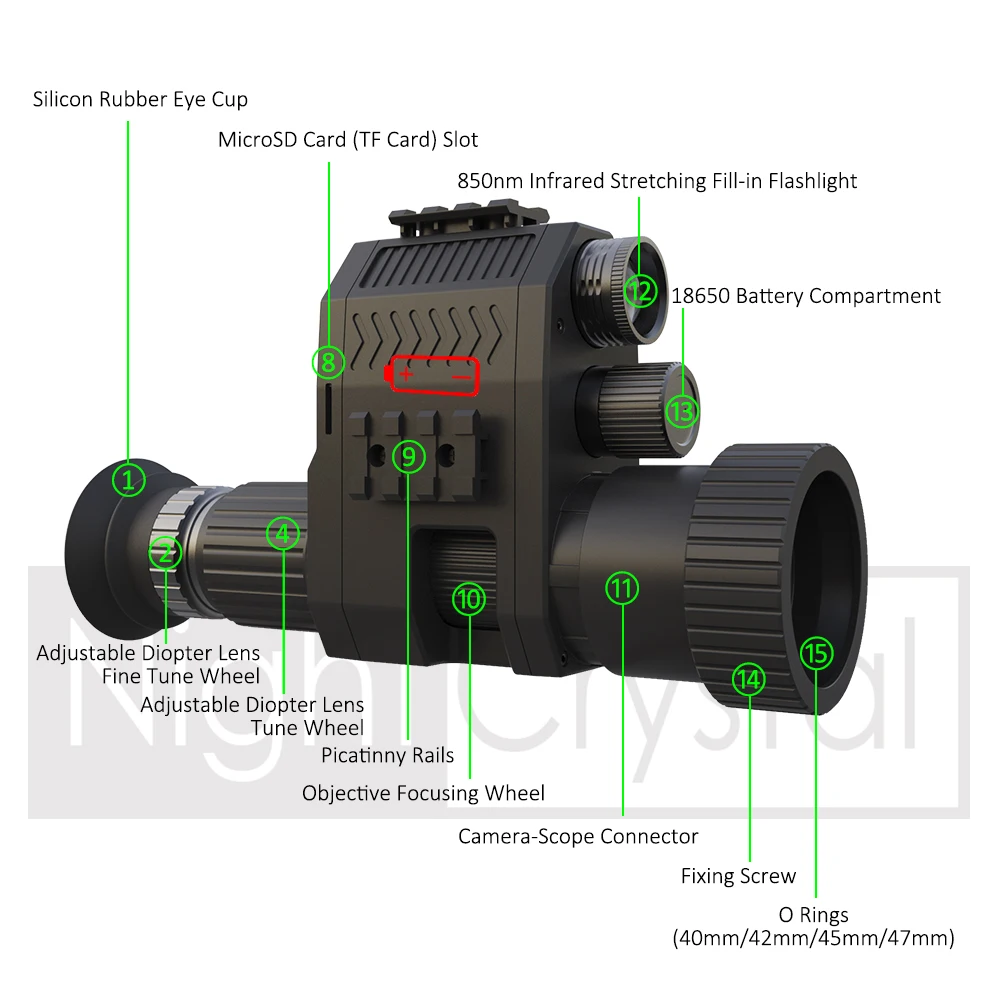

EASY TO INSTALL

1. Put battery in the battery compartment, positive pole faces inside.
(Remove the insulation foil on the battery if battery is included in the package.)
2. Insert the TF card in the TF card slot.
3. Put the fixing ring on the scope.
4. Select suitable O ring and put it on the scope, smaller size facing night vision camera.
5. Put the night vision camera-scope connector on the camera and screw it on.
6. Put the camera on the scope and screw the fixing ring to fix the night vision camera.
7. Screw the fixing ring to fix the night vision camera.

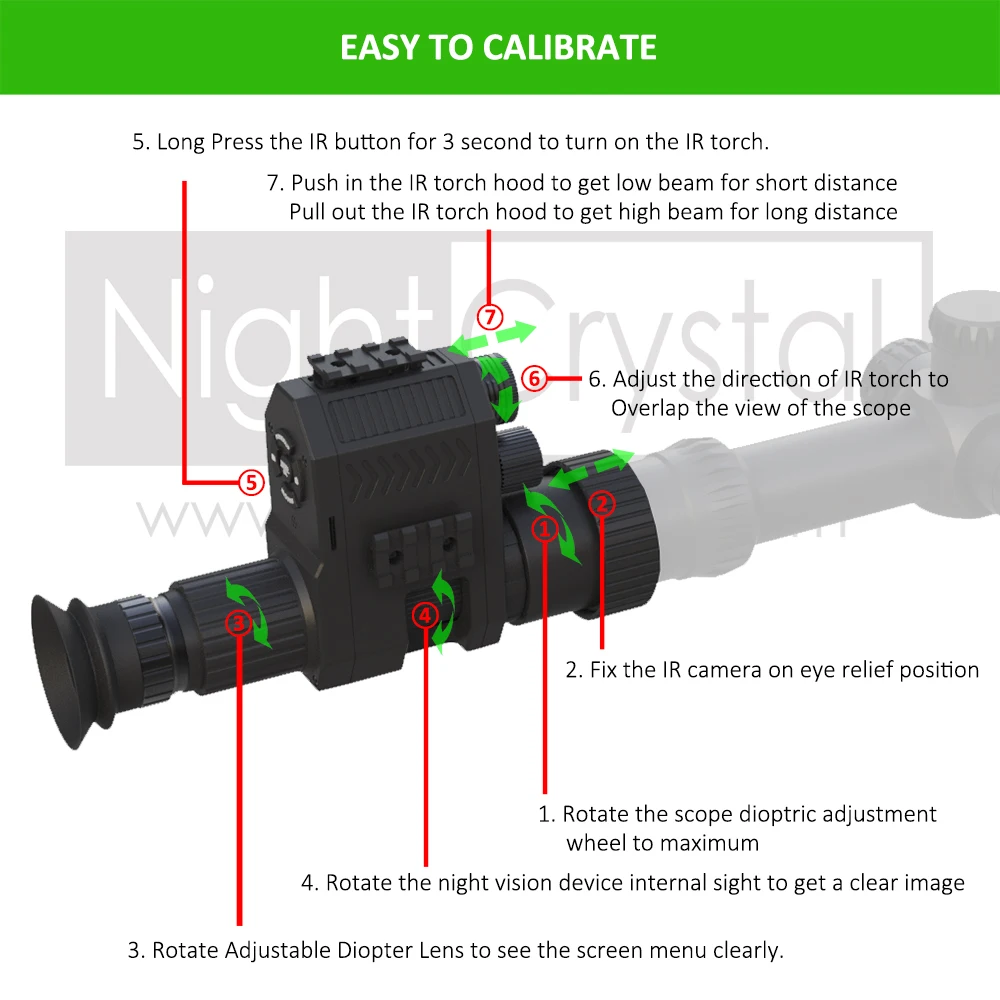

EASY CALIBRATION

1. Rotate the scope dioptric adjustment wheel to maximum;
2. Fix the IR camera on eye relief position of the rifle scope.
3. Rotate the adjustable diopter lens to see the screen menu (the letter and icon on the screen) clearly.
4. Rotate the night vision device internal sight to get a clear image.
5. Long press the IR button for 3 seconds to turn on the IR torch, night mode will be activated automatically.
6. Adjust the direction of the IR torch to overlap the view of the scope.
7. Push in the IR torch hood to get low beam for short distance aiming.
Pull out the IR torch hood to get high beam for long distance aiming.

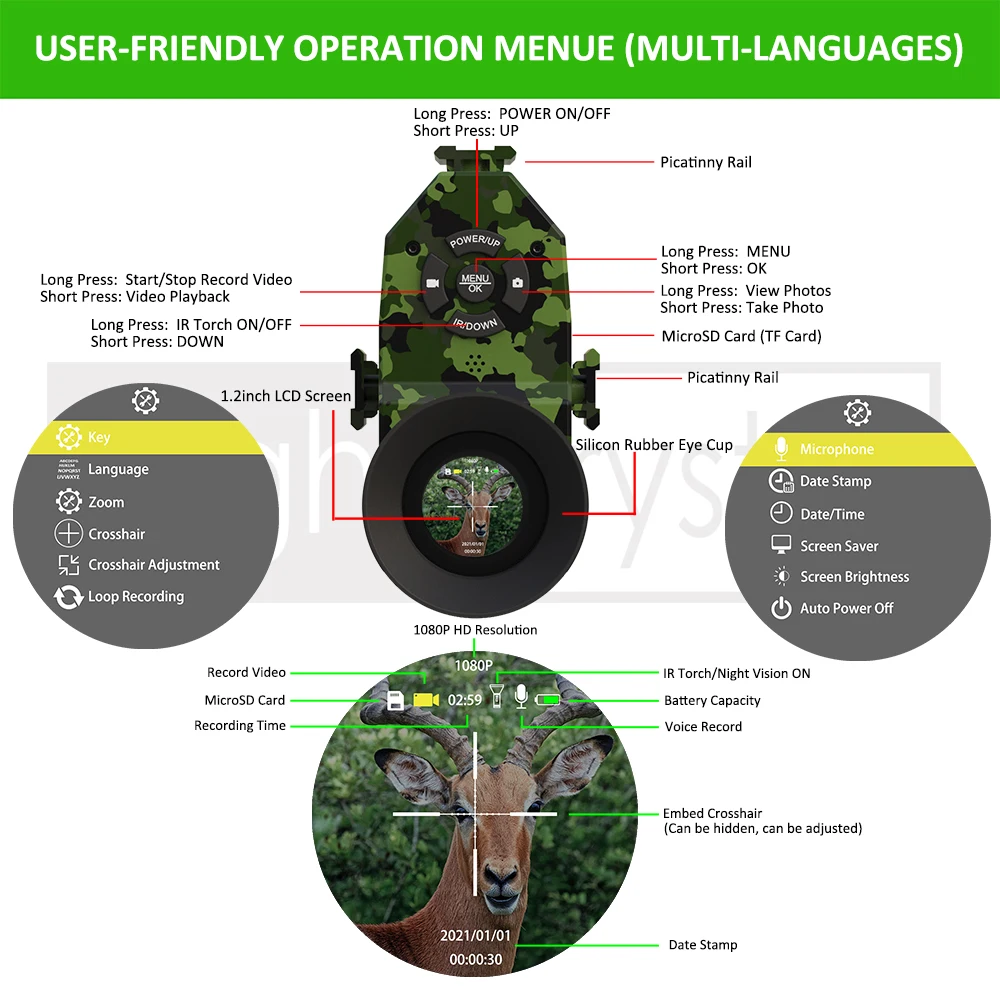

EASY OPERATION MENU

POWER BUTTON:
Long Press: POWER ON/OFF
IR BUTTON:
Long Press: IR Torch ON/OFF
Short Press: DOWN
VIDEO BUTTON:
Long Press: Start/Stop Recording Video
Short Press: Video Playback
CAMERA BUTTON:
Long Press: View Photos
Short Press: Take Photos
MENU/OK BUTTON:
Long Press: MENU
Short Press: OK
MENU LANGUAGES: English, Español, Português, Polski, Français, Русский, Italiano, Deutsch, Nederlands, عربي.
KEY: night & day mode effect setting, it is recommended to set it to “-” during the day and “+” at night
ZOOM: 1-4 times
CROSSHAIRS :On/Off
CROSSHAIR ADJUSTMENT: Crosshair can move up, down, left and right, press the OK key to confirm the adjustment when it is OK.
LOOP RECORDING: Off/3minutes/5minutes/10minutes

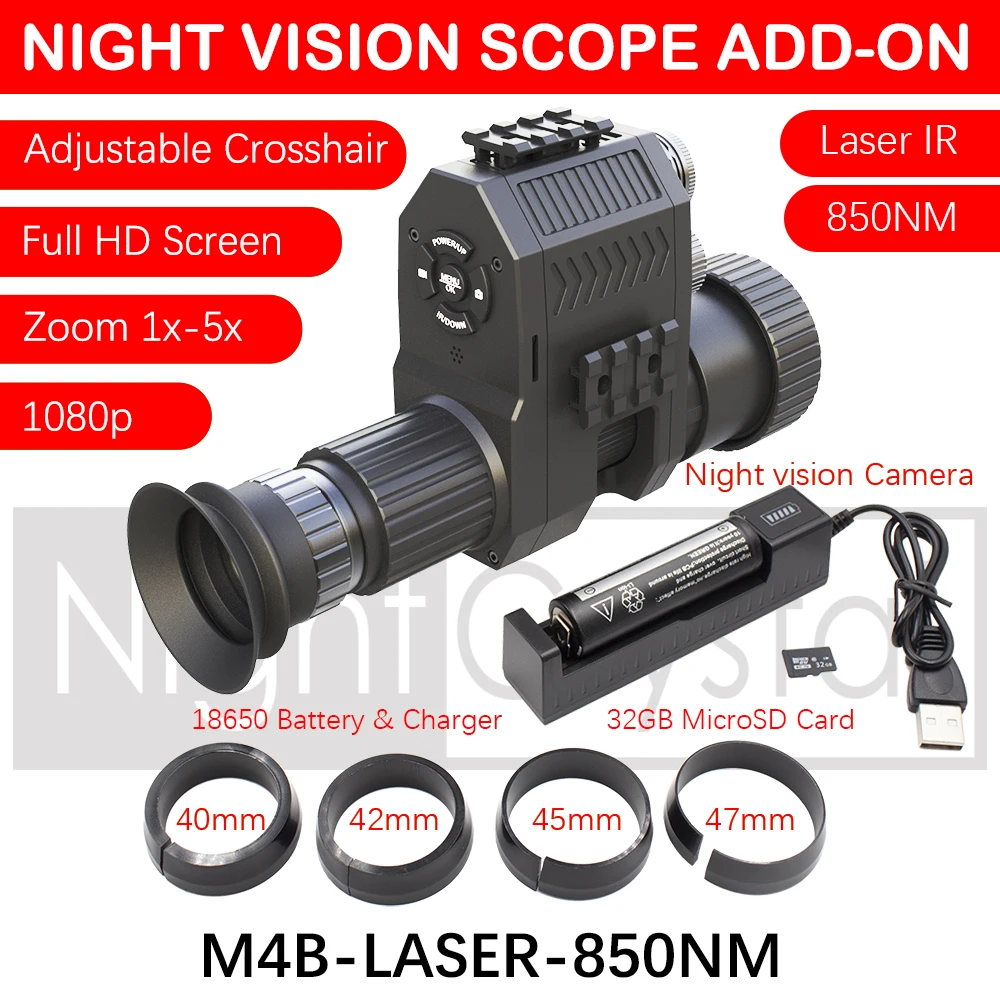

OPTION 1: M4B-850NM

1x Night Vision Camera with 850NM IR
1x Easy Fitting Connector with Rings
(40mm/42mm/45mm/47mm Inner OD)

OPTION 2: M4B-850NM-32G-B

1x Night Vision Camera with 850NM IR
1x Easy Fitting Connector with Rings
(40mm/42mm/45mm/47mm Inner OD)
1x TF Card (MicroSD Card)
1x Rechargable Battery (Packed inside the Camera)
1x Battery Charger with USB Plug

OPTION 1: M4B-940NM

1x Night Vision Camera with 940NM IR
1x Easy Fitting Connector with Rings
(40mm/42mm/45mm/47mm Inner OD)

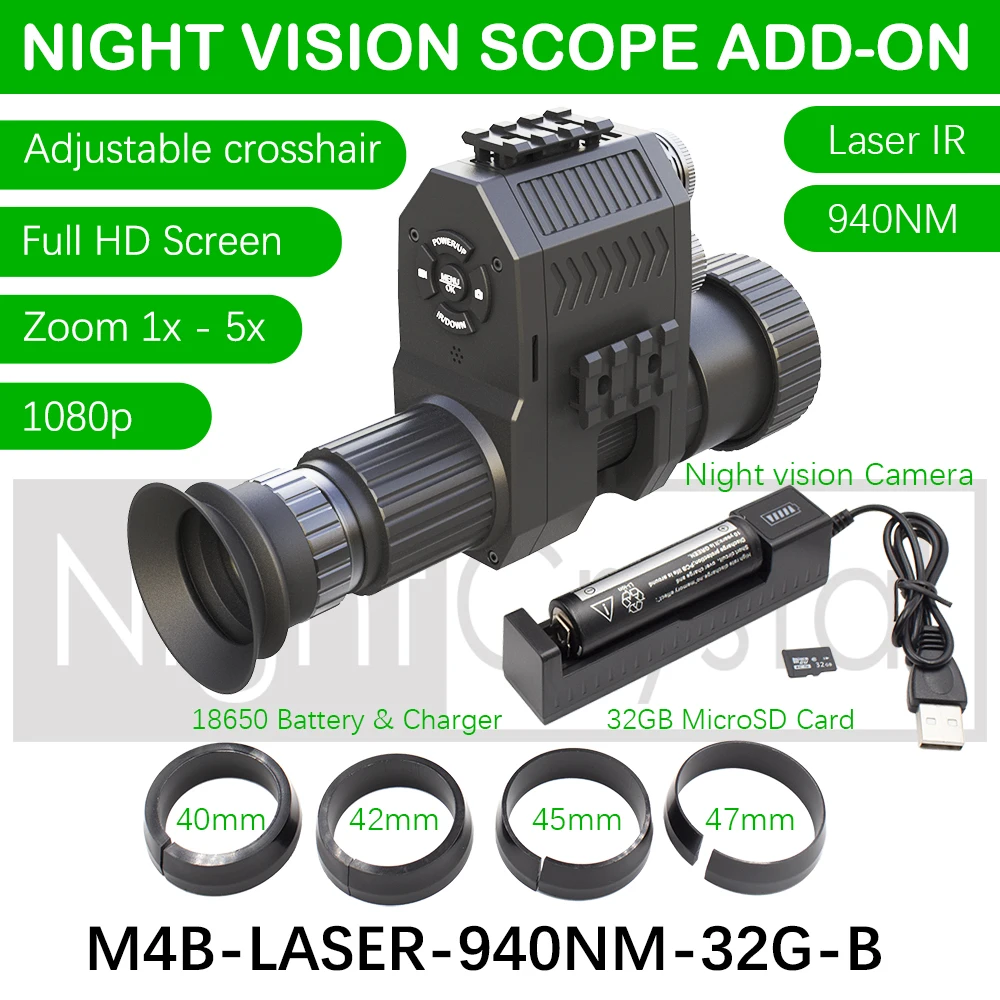

OPTION 2: M4B-940NM-32G-B

1x Night Vision Camera with 940NM IR
1x Easy Fitting Connector with Rings
(40mm/42mm/45mm/47mm Inner OD)
1x TF Card (MicroSD Card)
1x Rechargable Battery (Packed inside the Camera)
1x Battery Charger with USB Plug

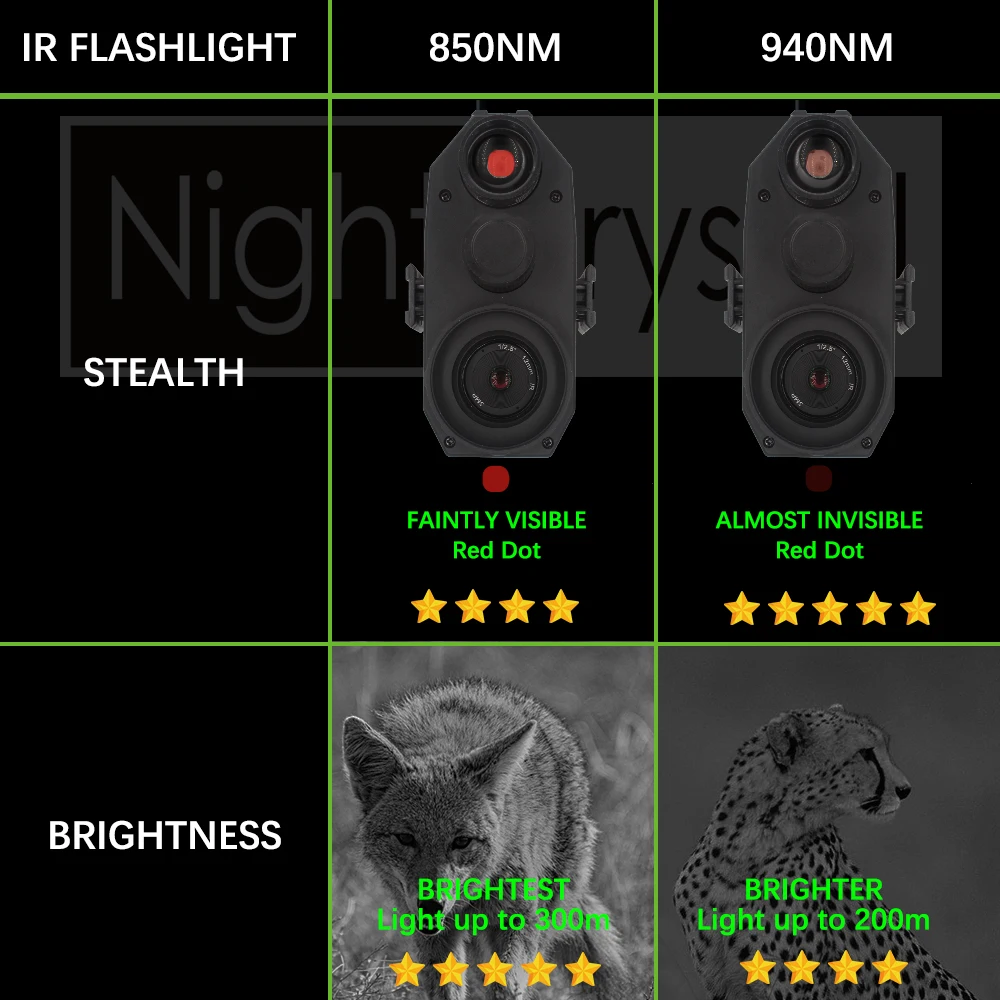

DIFFERENCE BETWEEN 850NM & 940NM

The 850nm IR offers higher brightness with a visible range up to 300 meters, but has a faint red dot that may alert prey, while the 940nm IR is more stealthy with an almost invisible emitter, but has a slightly shorter visible range of up to 200 meters.
